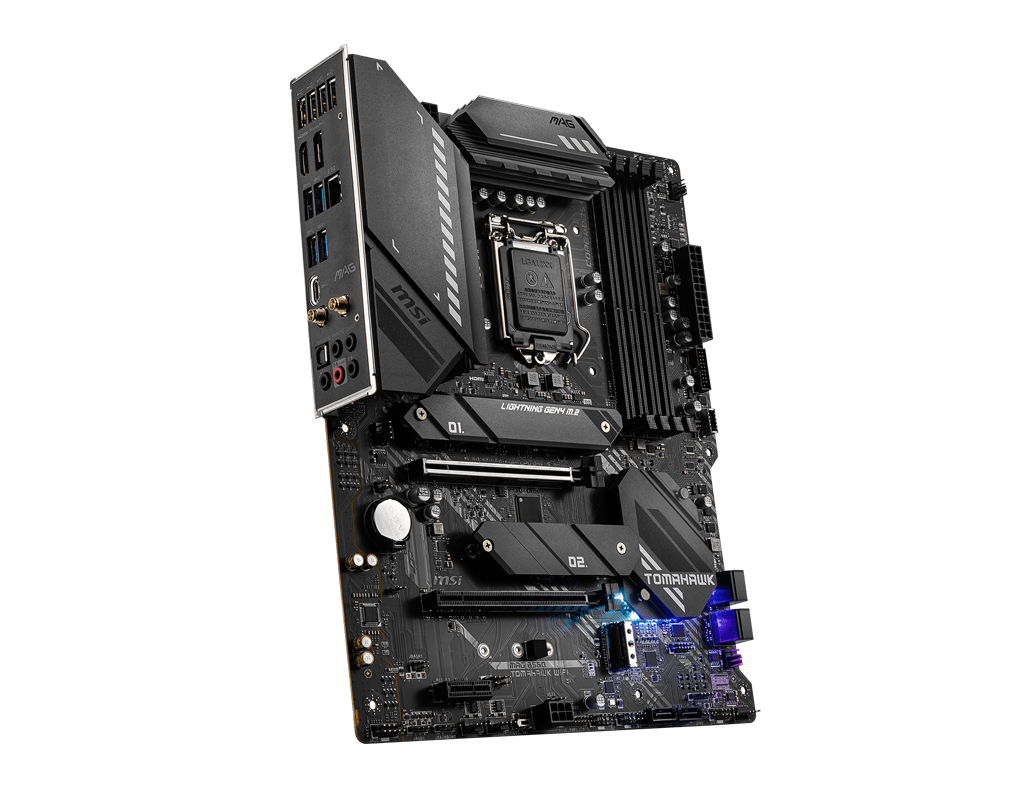

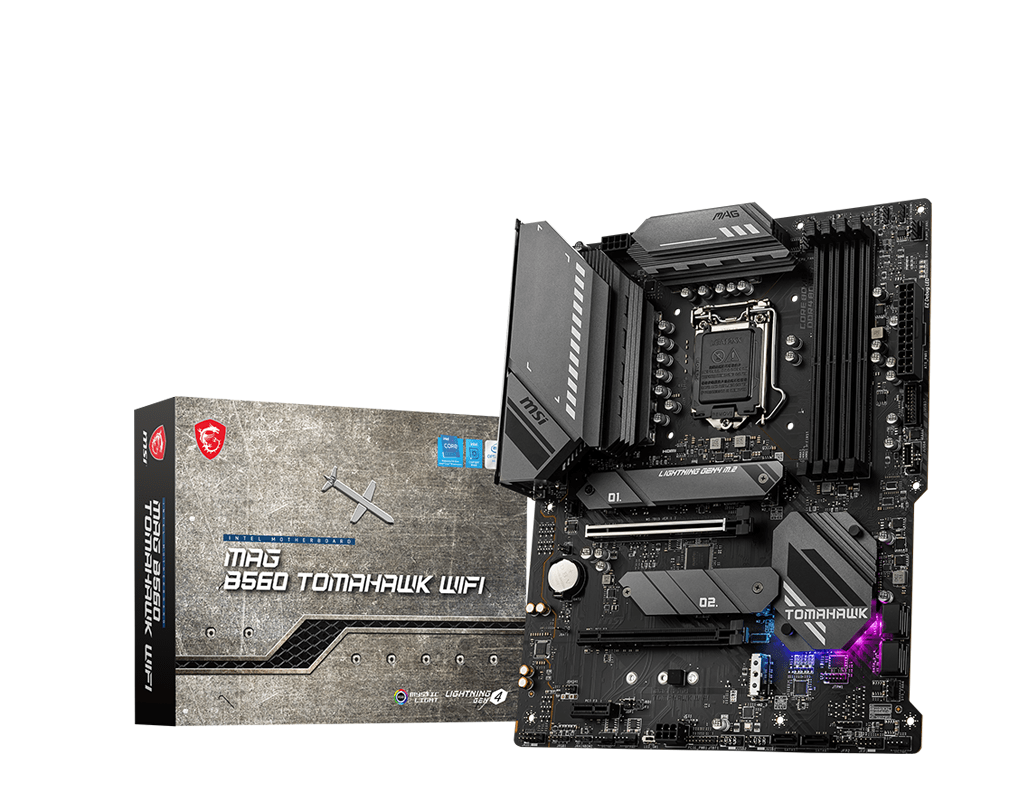

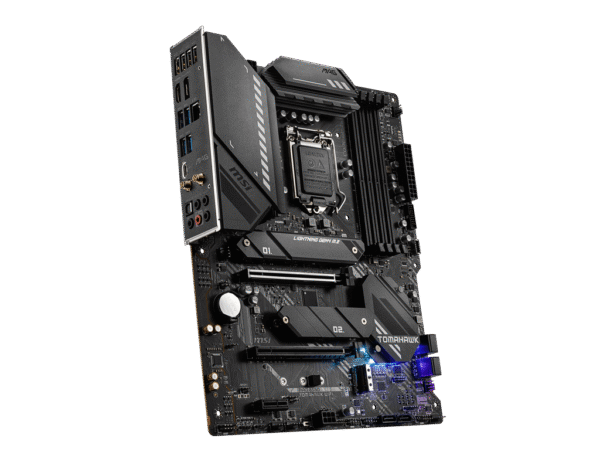

MSI MAG B560 TOMAHAWK WIFI Motherboard

Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5066(OC) MHz Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C Audio…

Description

CPU (MAX SUPPORT)	i9
SOCKET	1200
CHIPSET	Intel B560 Chipset
DDR4 MEMORY	5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC) / 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL	Dual
DIMM SLOTS	4
MAX MEMORY (GB)	128
PCI-E X16	2
PCI-E X1	1
SATAIII	6
M.2 SLOT	3
LAN	1x Realtek 8125B 2.5G LAN
WIFI & BLUETOOTH	Intel Wi-Fi 6E AX210
USB 3.2 PORTS (FRONT)	1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)	1(Gen 2×2, Type C), 4(Gen 1, Type A)
USB 2.0 PORTS (FRONT)	4
USB 2.0 PORTS (REAR)	4
AUDIO PORTS (REAR)	Realtek ALC897 Codec
DISPLAYPORT	1
HDMI	1
FORM FACTOR	ATX
CROSSFIRE	Y
OPERATING SYSTEM	Support for Windows 10 64-bit
